Wall syntax way

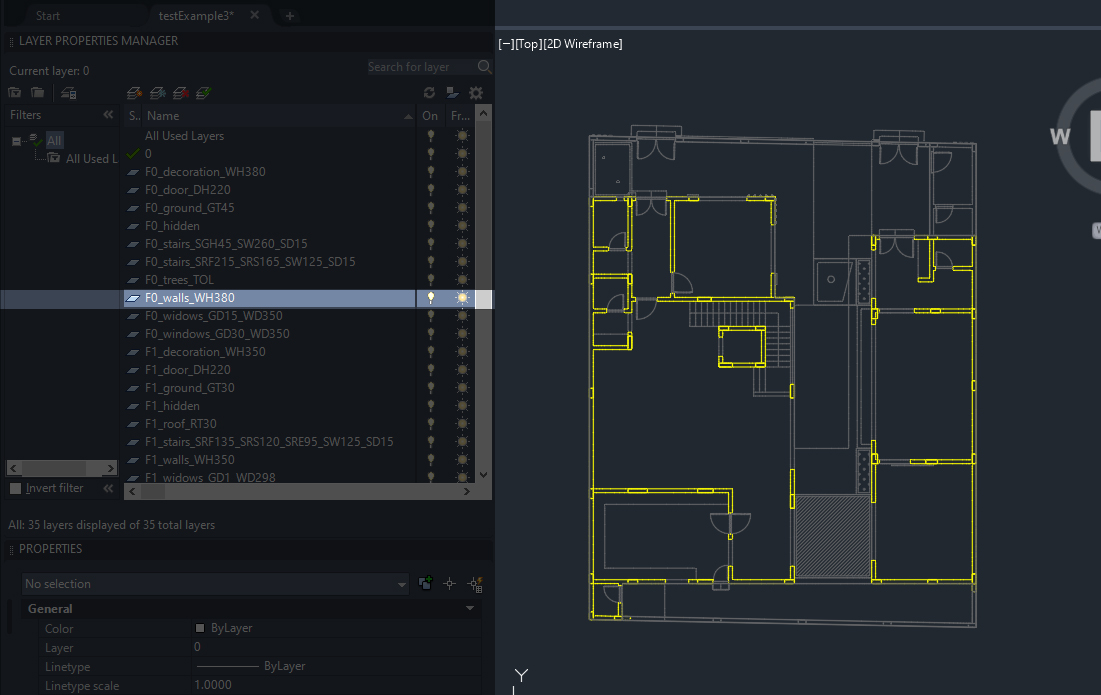

in a simple way see ( image 1 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for

Image 1 Wall Layer Syntax

Explain how Draw Walls layers

The walls are the same as you usually draw, but it is preferable that they be connected as much as possible, and of course the number of layers is according to the heights if they are uniform. see Example (image2)

create connected Wall from floors

add to syntax high of Triangle how is long in center and also how long of wall for Triangle (image 3).

Image 3 wall floors Syntax

create Arch for top of window

just add to syntax high of Arch how is long in center and also how long of wall for Arch (image 2).

Image 2 wall Arch Syntax

create Triangle Wall

add to syntax high of Triangle how is long in center and also how long of wall for Triangle (image 3).

Image 3 wall Triangle Syntax

Important note:

Curves and lines must be joint as possible

Image 2 Example of wall Layer
