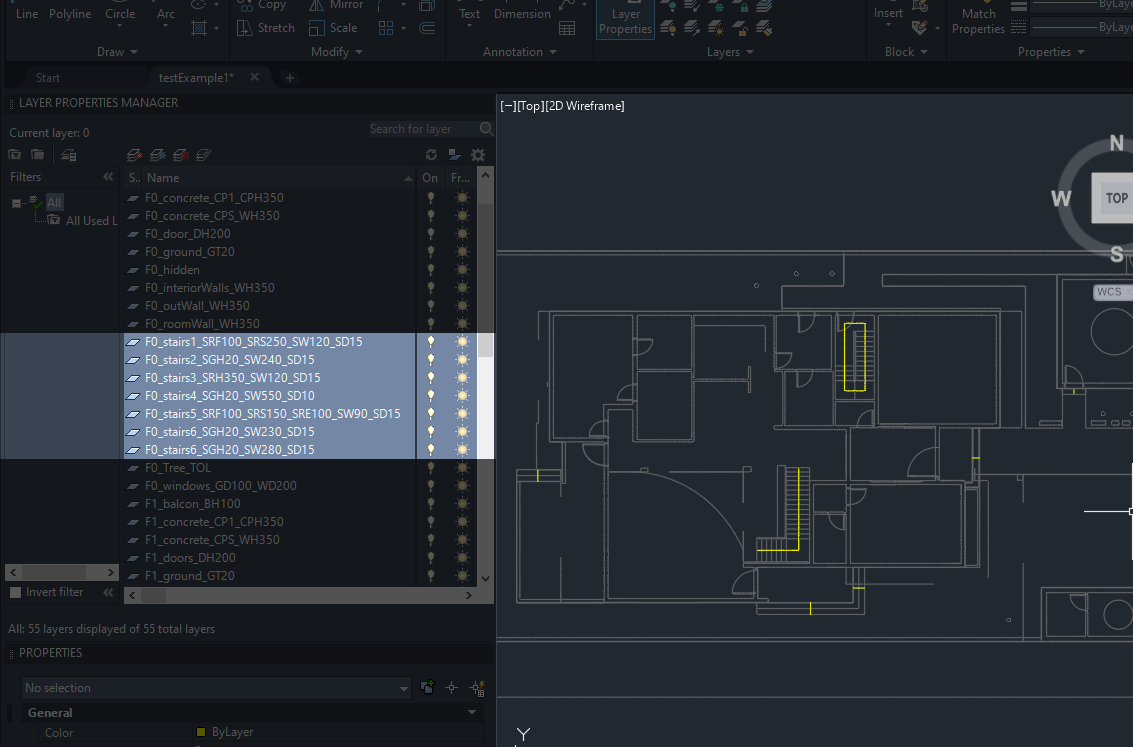

In the layers of stairs, it is important to understand the mechanism of drawing them in order to be able to implement them correctly. For example, image 1 finds how the order of the layers that must be delivered in order to obtain the desired and expected results.
Image 1 Example of all Stair Layers
in a simple way see ( image 2 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for.
Image 2 Normal & smooth shape Stair Syntax

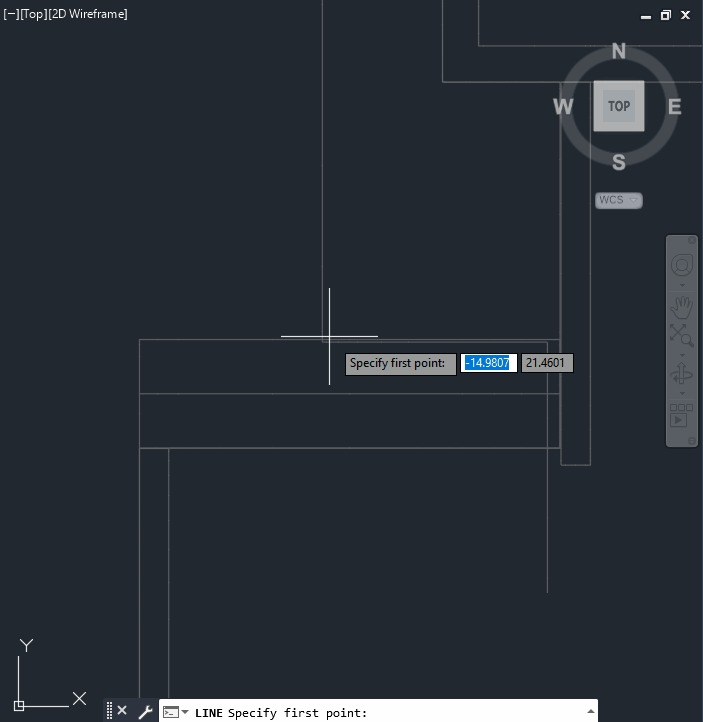

Drawing stairs, whether spiral or regular, is very easy. All you have to do is draw one line representing the desired shape with increasing points in it, as is the example of the (images 3 and 4).

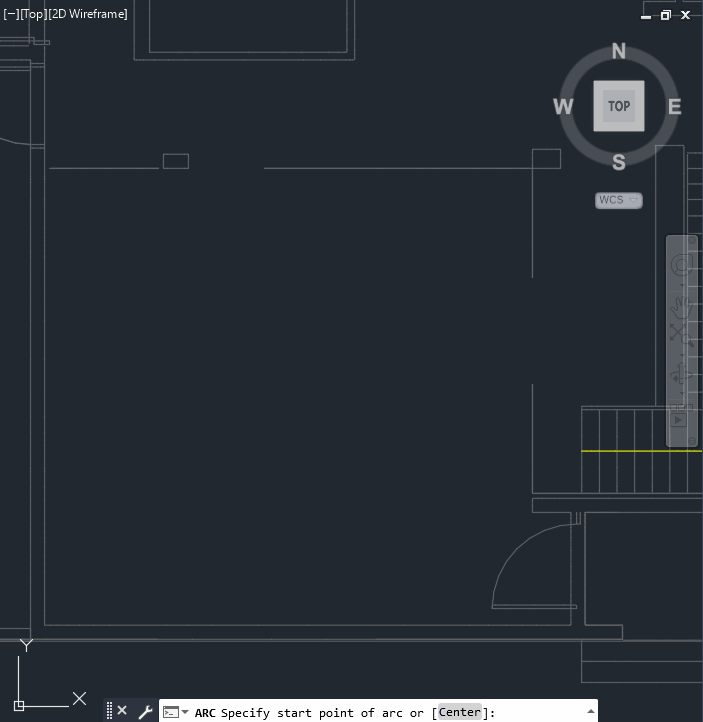

image 3

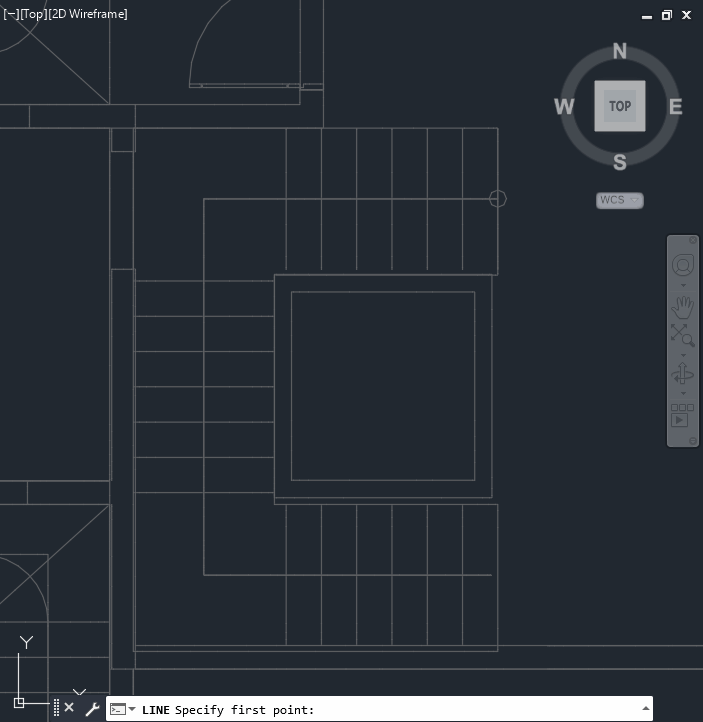

image 4
must be rebuild Curve or line to add 3 point or more then that.
in a simple way see ( image 5 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for.
Image 5 Tow Rest Stairs Syntax
Drawing stairs with one resting area, of course, has several shapes, such as an (images 6 and 7).

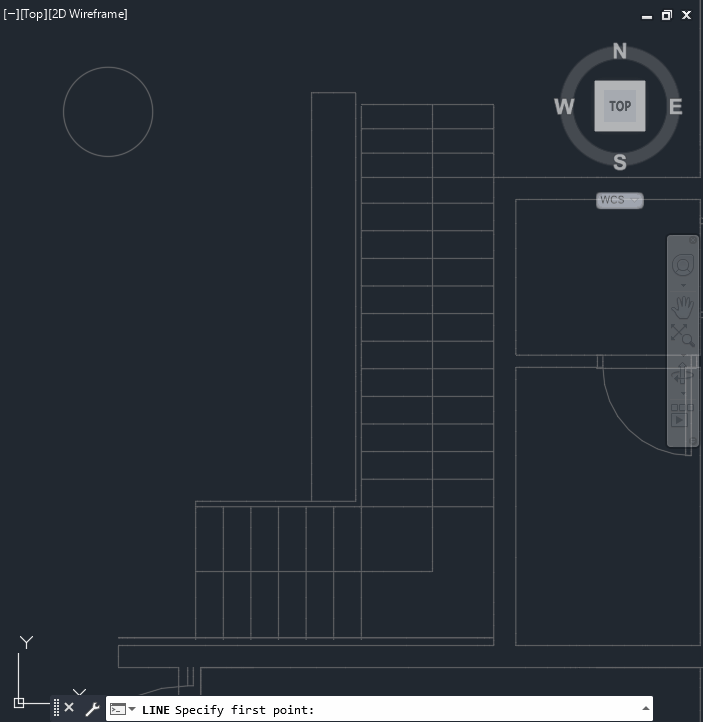

image 6

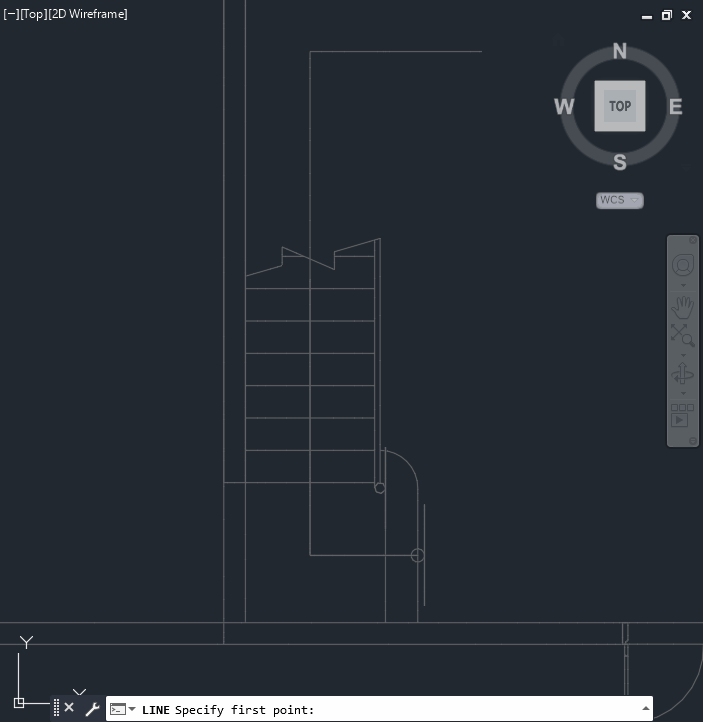

image 7
Curves or lines must be Joint.
in a simple way see ( image 7 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for.
Image 7 Three Rest stairs Syntax

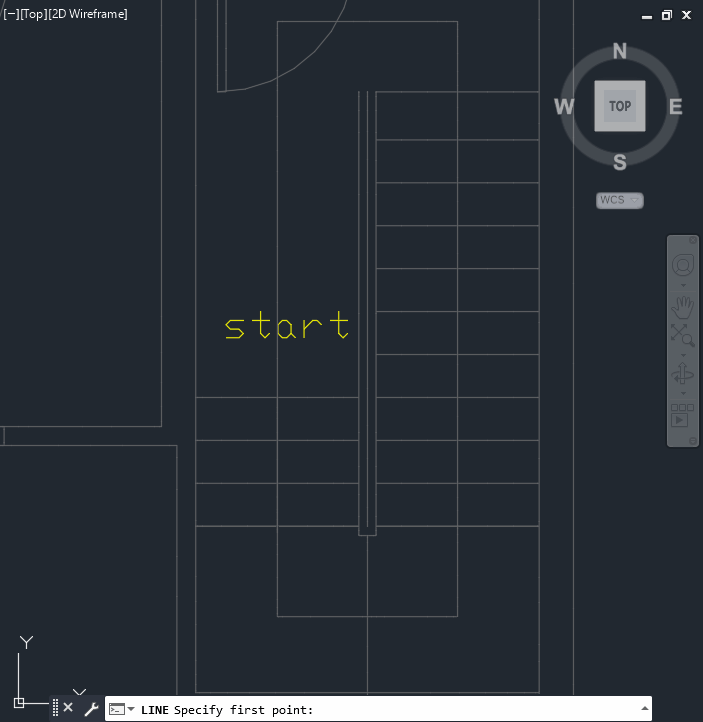

Drawing stairs with Two resting area, of course, has several shapes, such as an (images 8 ,9 and 10).

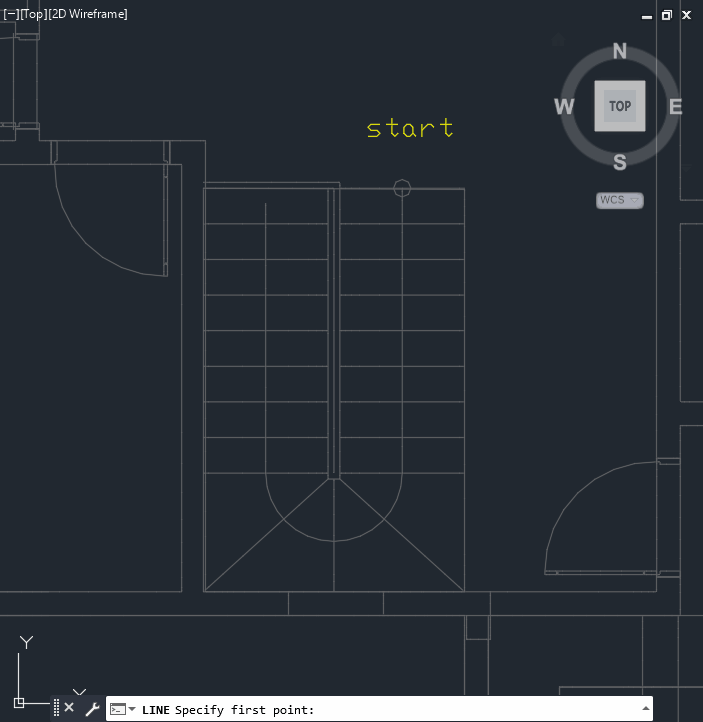

image 8
