The ceiling is divided into two parts, first the ordinary ceiling is concrete and secondly the brick. Of course, the method of implementation differs for both of them and we will explain it to you. Of course, we are interested in the way to implement the layers in the correct manner, and we made it smooth and easy as usual, for example, see (image1).
in a simple way see ( image 2 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for
Image 2 Normal roof Syntax
To draw the normal roof, it must be ensured that the shape is closed curves, whether it is a floor for the entire floor or floors for each room separately in the same layer.
In the case of gaps such as elevators, ventilation or staircases, and the like, the location of the gap is drawn in the same layer within the boundaries of the roof see (image 3).
Curves and lines must be closed

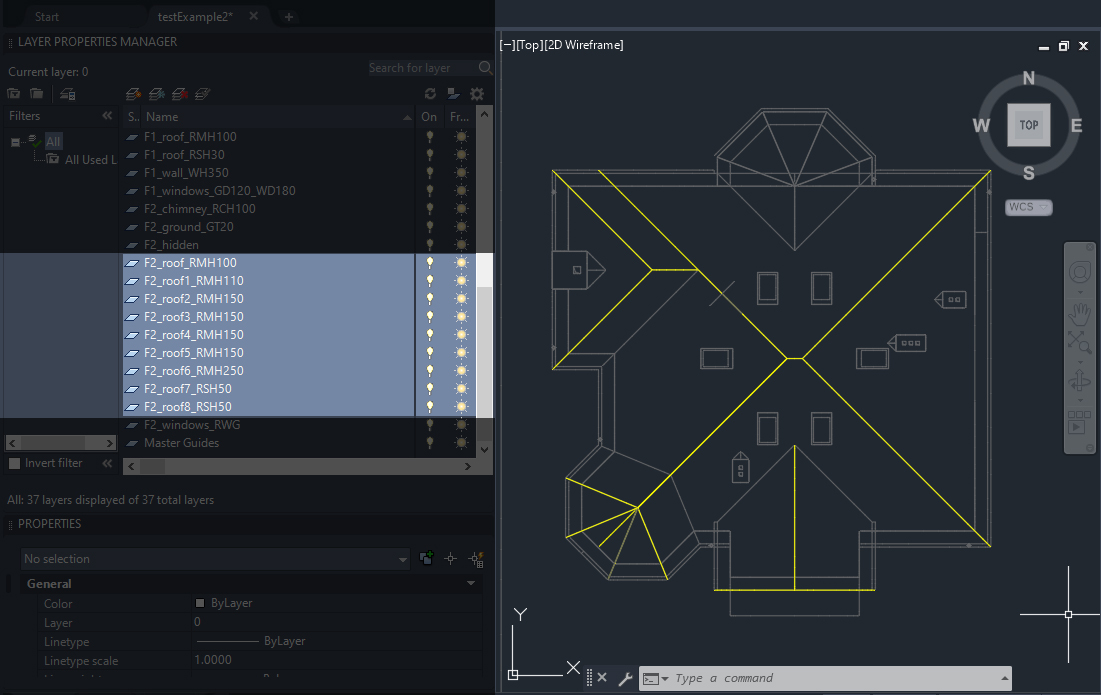

Image 1 Example of all roof Layers
Image 3 Example of roof layer
in a simple way see ( image 4 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for
Image 4 roof Main Syntax
The main roof is the height that does not depend on another roof, as there are three ways to draw the main roof, which are called (Draw, main roof type 1, 2 or 3).

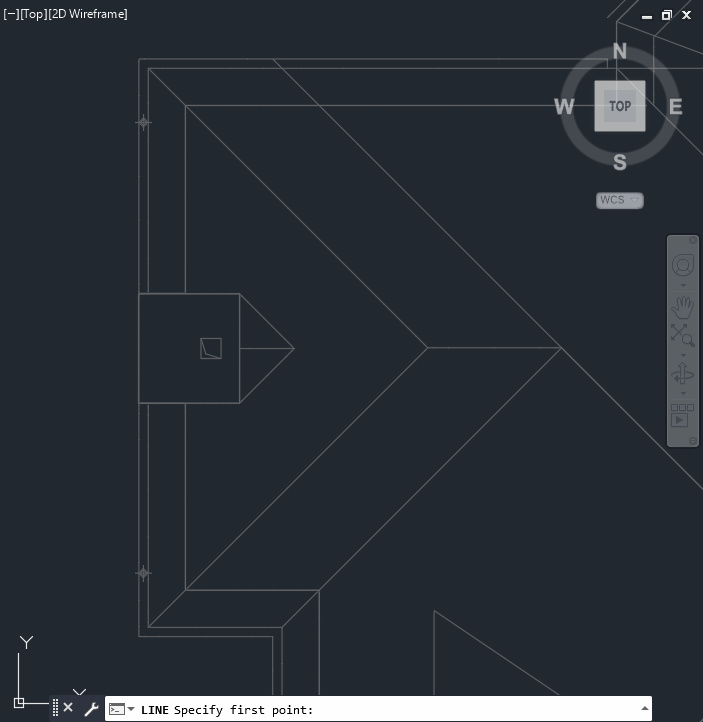

Draw main roof type 1

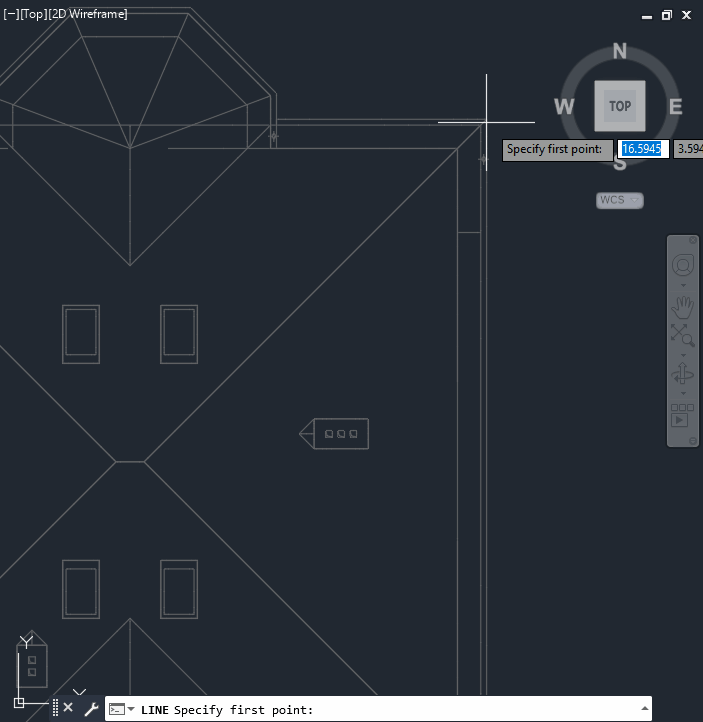

Draw main roof type 2

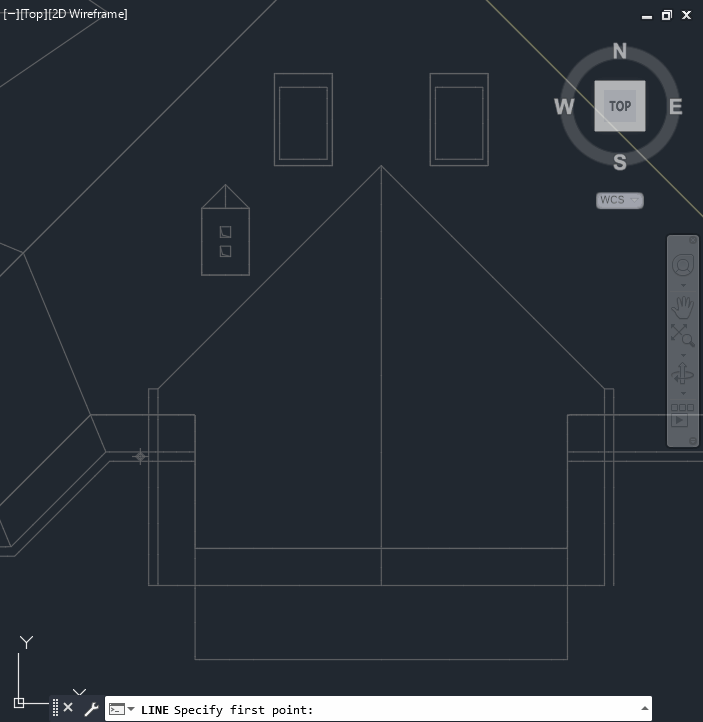

Draw main roof type 3
Curves and lines must be Joint see Examples image important!!
in a simple way see ( image 6 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for
Image 6 roof sub Syntax

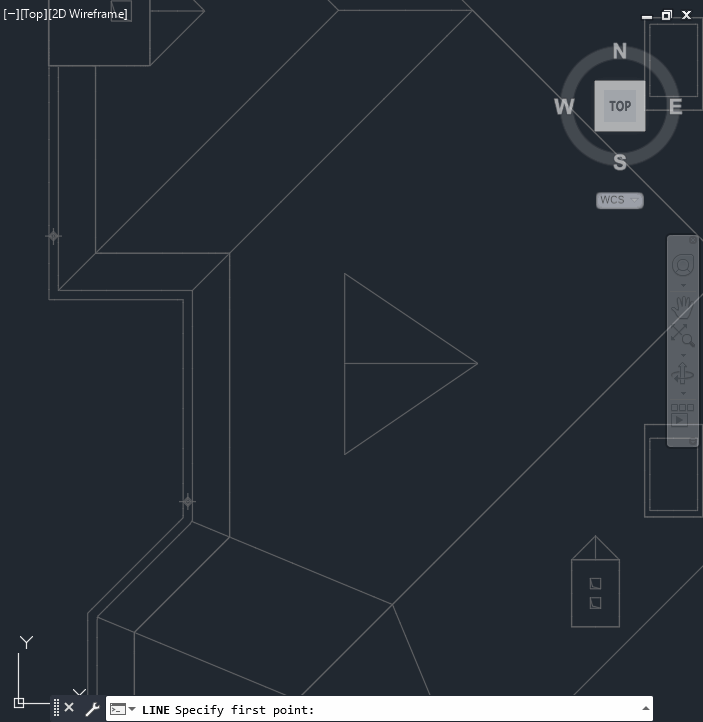

The sub-Roof is the height that rests on the main roof under it, see the image (Image 5 Draw sub Syntax).
Image 5 Draw sub Syntax
