Doors syntax way

in a simple way see (image 1 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for

Image 1 Door Syntax

Explain how to draw Doors

The method of drawing the borders of the door must be in the same way (image 2) and all the doors are placed inside the common layer in height, if all of them are of the same height, one layer comprising all the doors is sufficient (image 3).

create Arch for top of Doors

just add to syntax high of Arch how is long in center and also how long of wall for Arch (image 2).

Image 2 Door Arch Syntax

create Triangle for top of Doors

add to syntax high of Triangle how is long in center and also how long of wall for Triangle (image 3).

Image 3 Door Triangle Syntax

Important note:

If the doors are of different heights, layers must be made for each common group at the same height on each floor

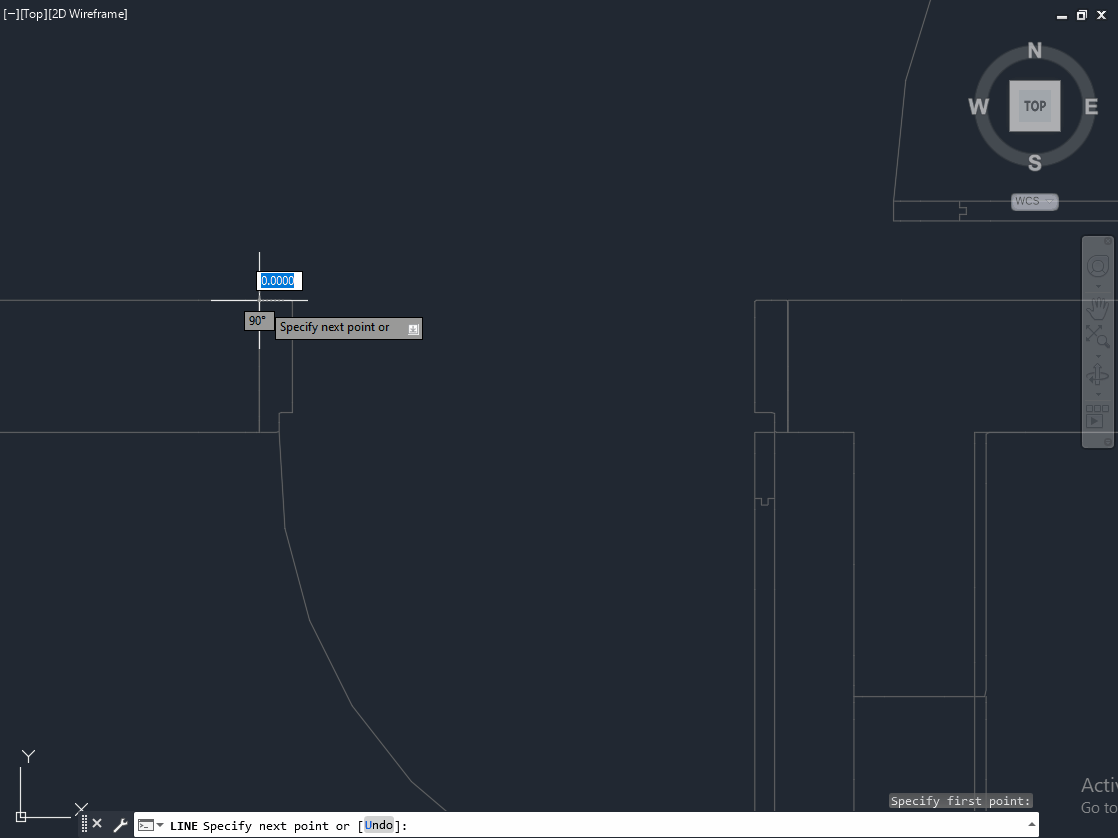

Image 4 Draw door way

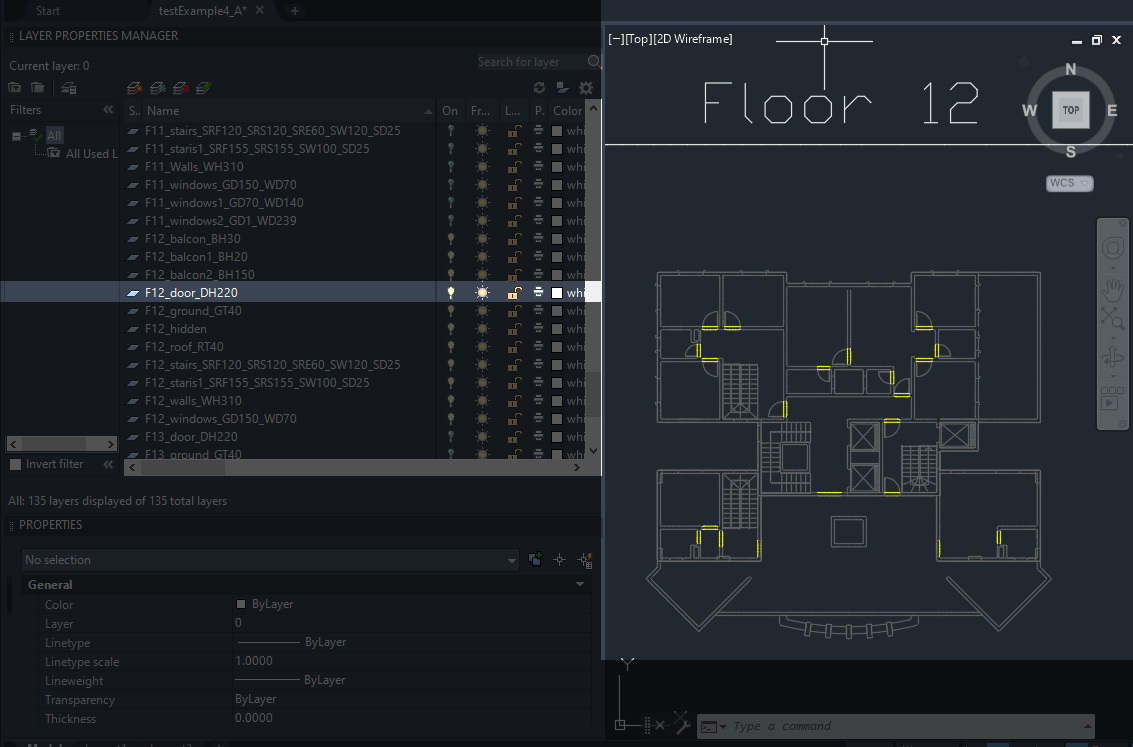

Image 5 Example door layer
