Syntax - Chimney


Chimney syntax way

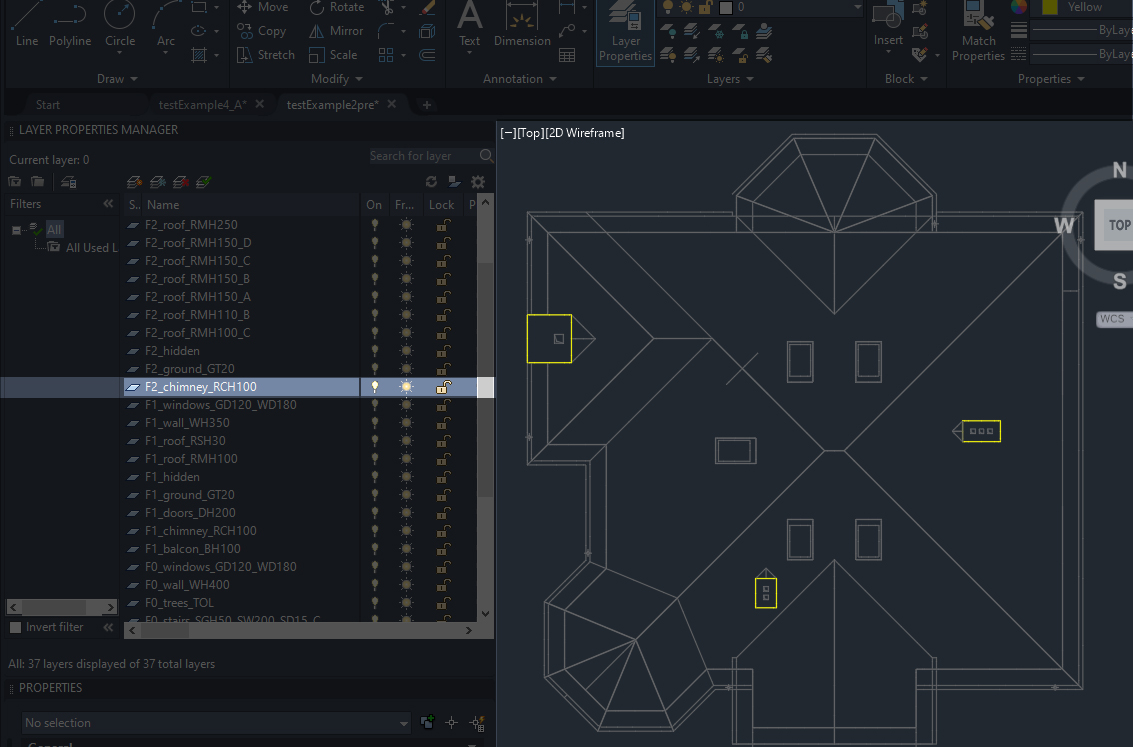

in a simple way see (image 1 ) that showing name of layer syntax that should be in your Autocad files you send it to us and sure to get your result you are looking for

Forest

Image 1 Chimney Syntax

Explain how to draw Chimney

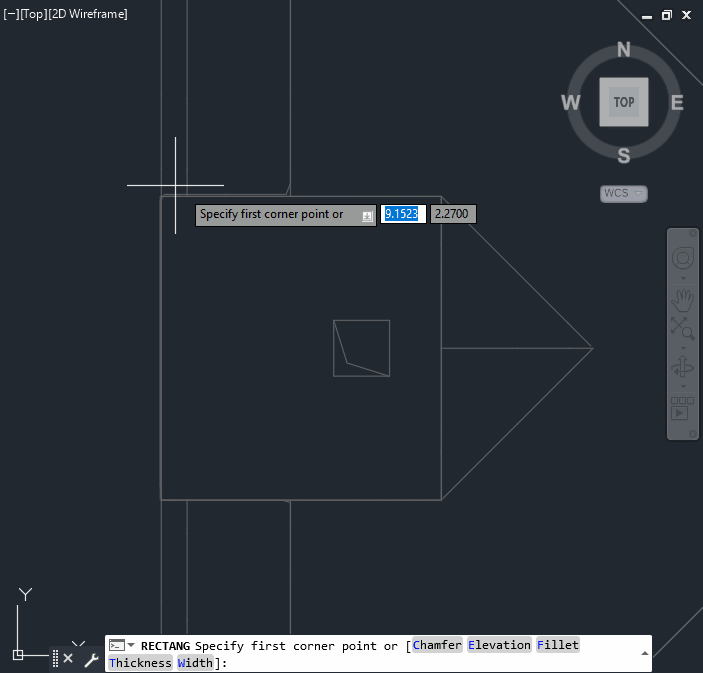

To draw the Chimney, it must be ensured that the shape is closed curves, see (image 2).

sure if they are many Chimney in your roof you can draw them all in same layer see (image 3) example.

Important note:

Curves and lines must be closed

Forest

Image 2 Chimney drawing Way

Forest

Image 3 Chimney in one floor
